Premium EC Grade material with guaranteed chemical purity and high electrical conductivity.
Purity ≥ 99.5%IACS ≥ 61%

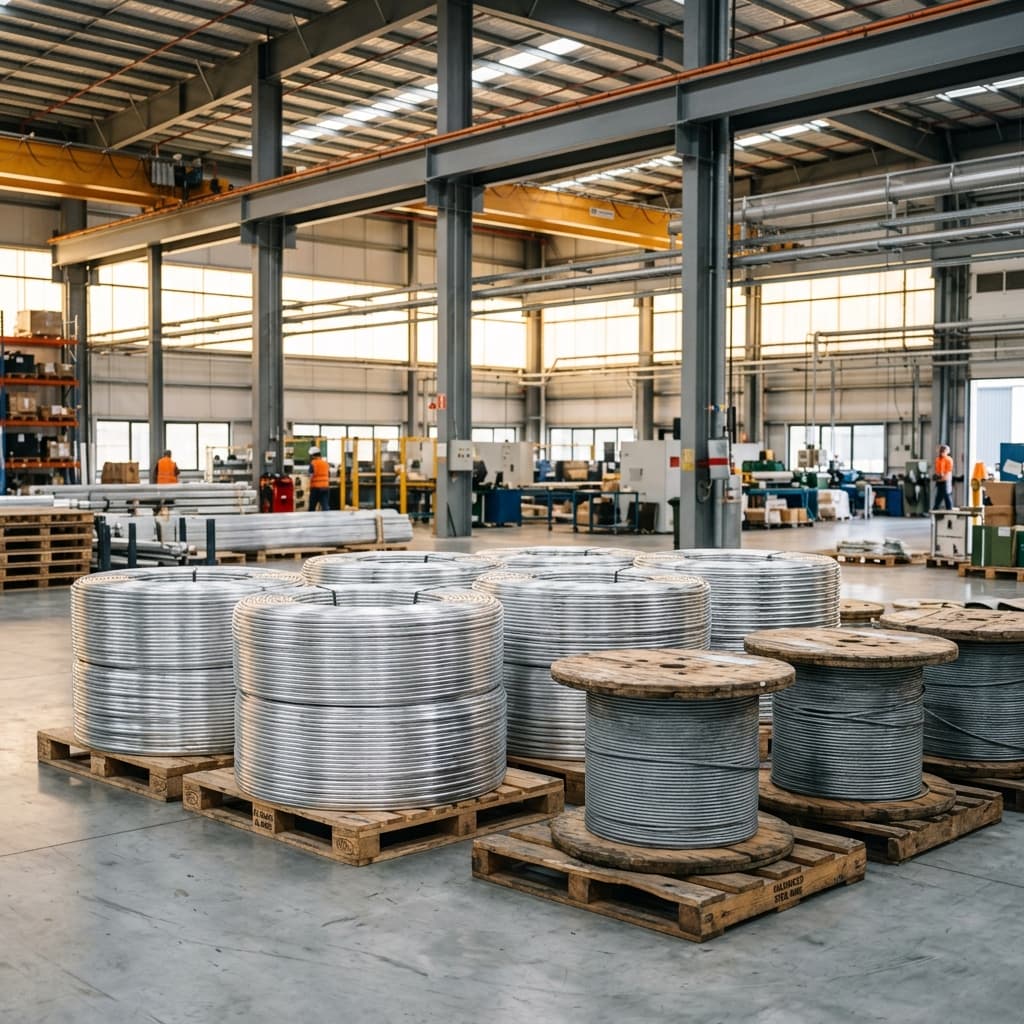

Aluminium outer layers
Aluminium outer layers
High-purity aluminium strands form the conductive outer section.
ACSR Conductorsfor Strength-Critical Overhead Lines
Aluminium Conductor Steel Reinforced conductors built to combine aluminium current carrying capacity with the mechanical strength of a galvanized steel core.
Key Benefits
Combining aluminium current capacity with mechanical steel strength.
ACSR conductors are bimetallic stranded conductors used where transmission and distribution lines need a strong balance of current capacity, mechanical strength, and span performance.
High tensile strength
Steel reinforcement supports longer spans and demanding route conditions.
Efficient current carrying
Aluminium outer strands provide conductivity with manageable conductor weight.
Flexible design
Aluminium-to-steel proportions can be selected for the project requirement.
EHV suitability
Brochure includes ACSR for extra high voltage above 400 kV as per IS 398 Part 5.
Proven line format
Widely used in overhead transmission and distribution networks.
Broad range
The brochure includes multiple standard code-name sizes from distribution to transmission applications.

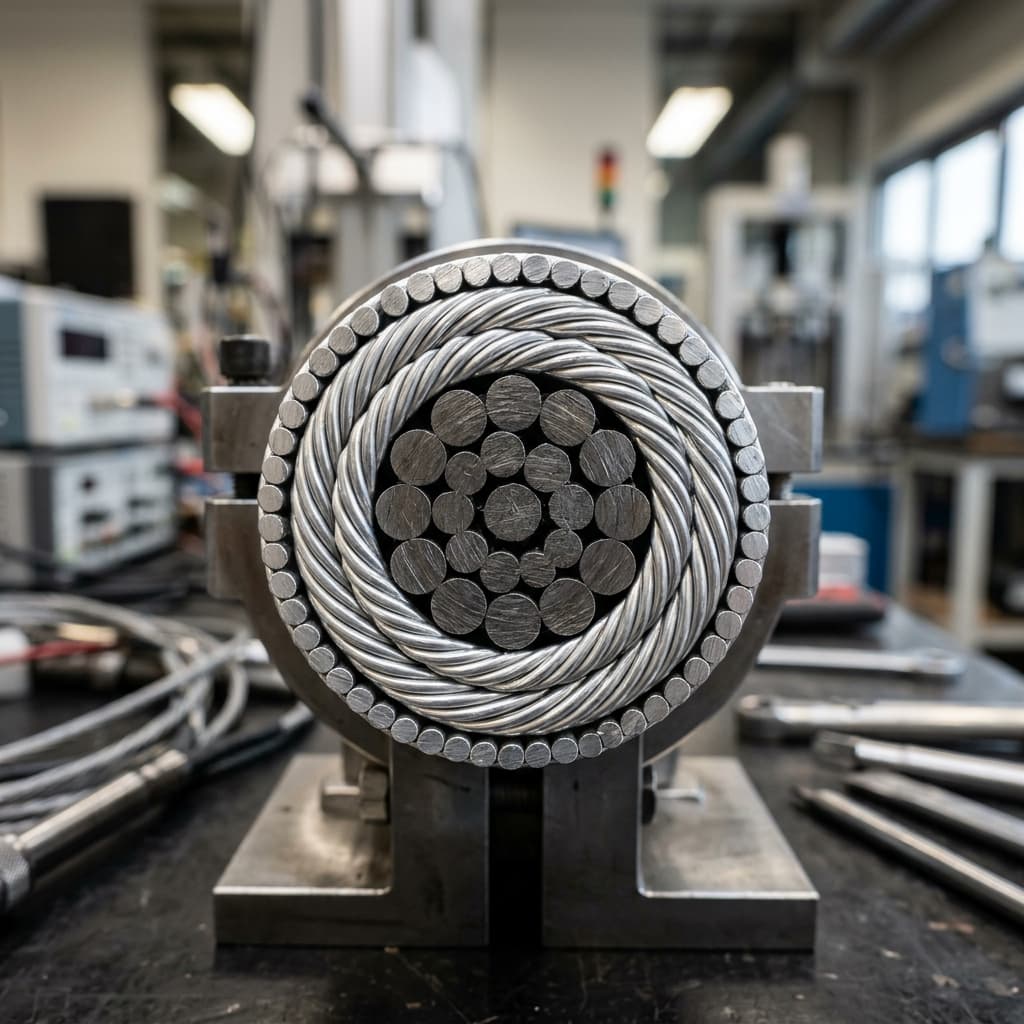

Conductor Build-Up
Bimetallic strength, controlled into a dependable conductor.
The ACSR profile is built around high-purity aluminium outer strands and a galvanized steel core, validated against recognized conductor requirements.

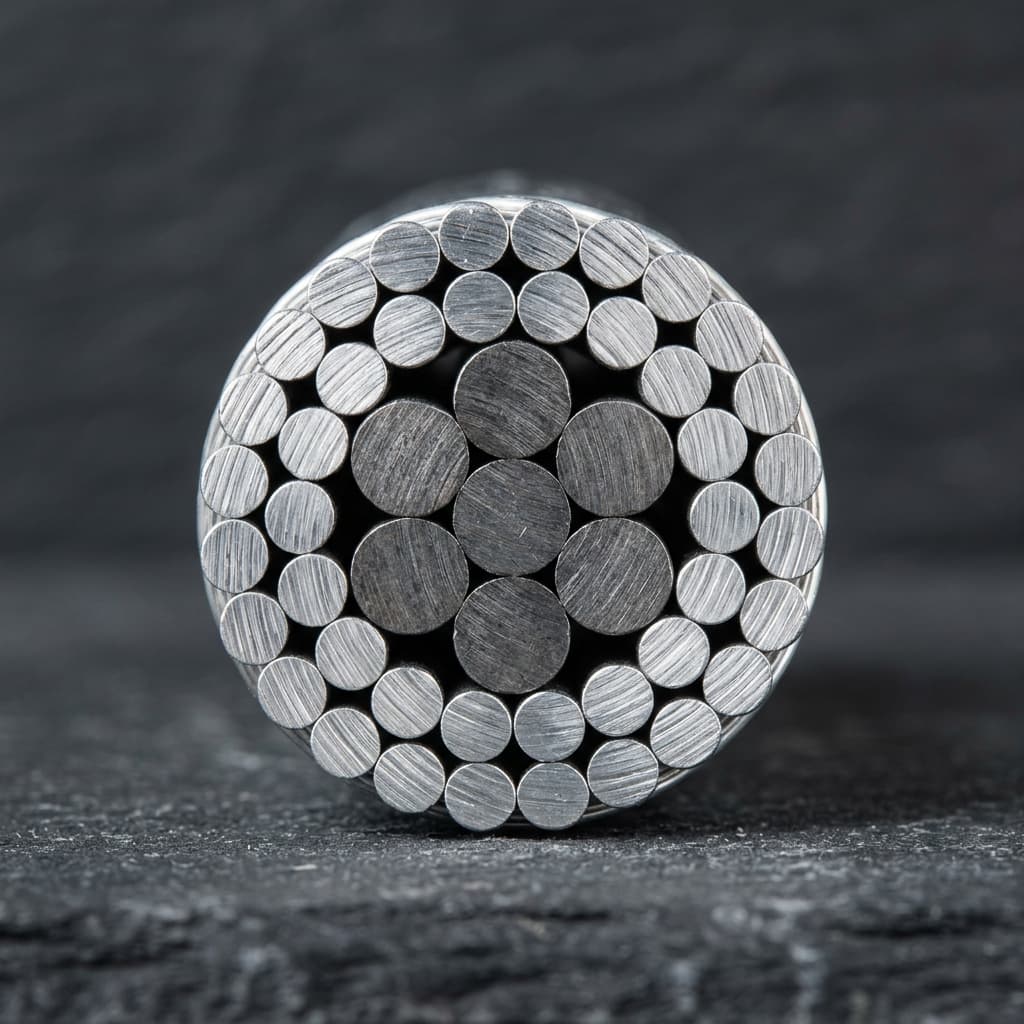

Galvanized steel core
Galvanized steel core
The central reinforcement carries tensile load and conductor weight.

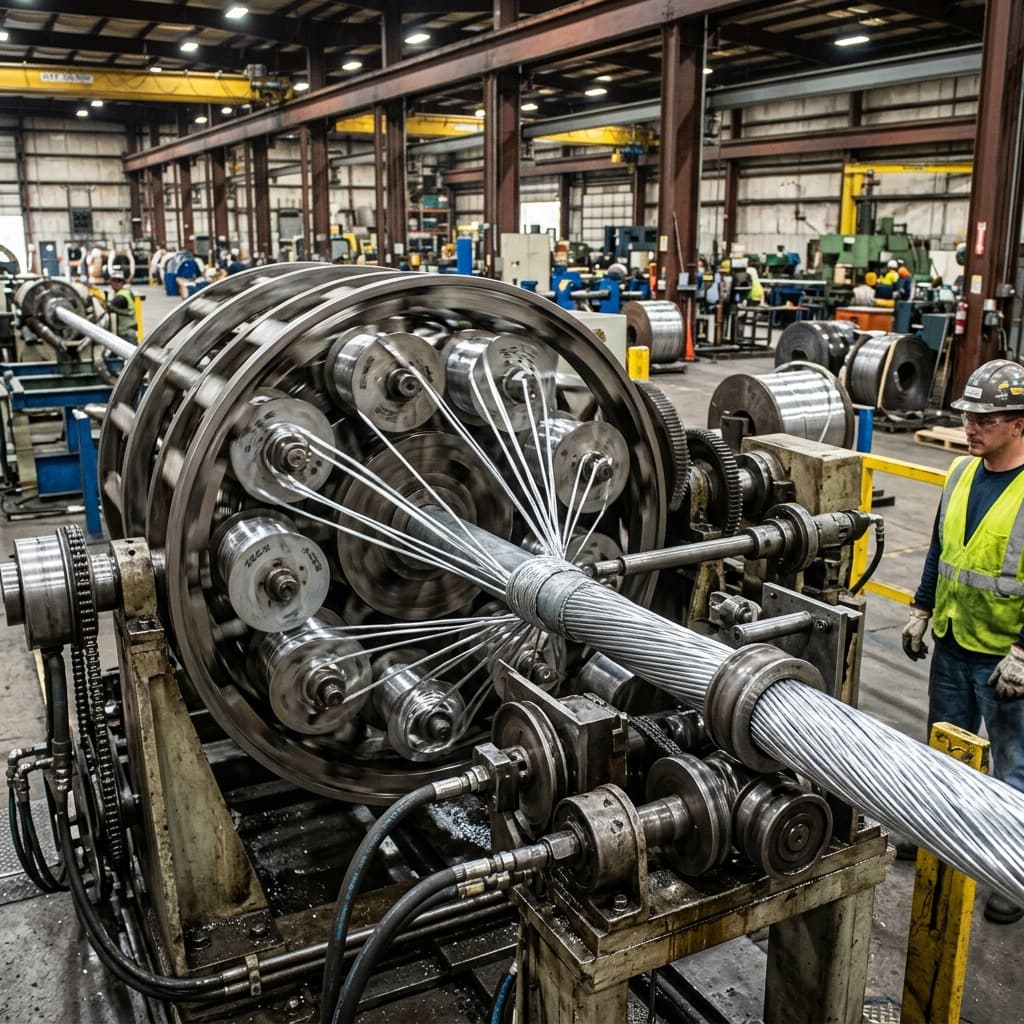

Layered stranding
Layered stranding
Aluminium may be arranged in one or more concentric layers depending on size.

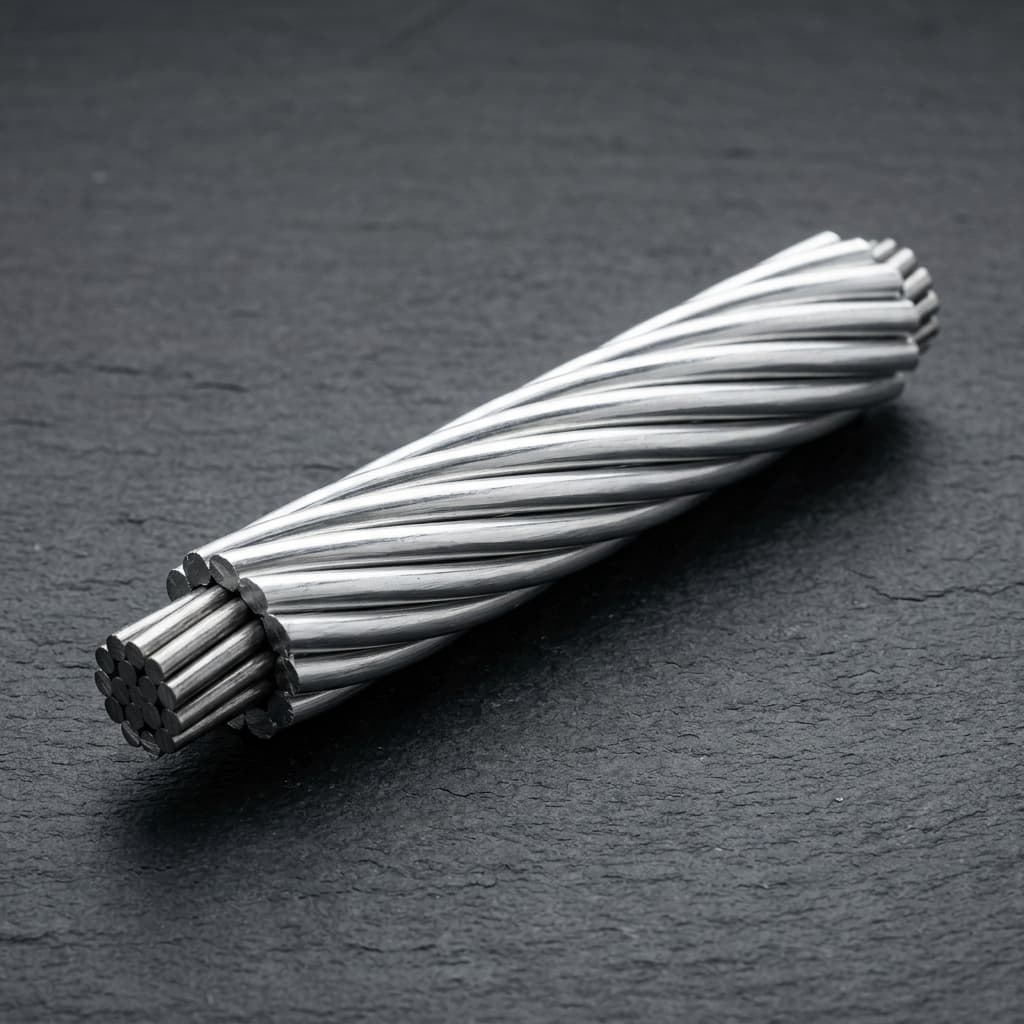

EHV variants
EHV variants
Higher voltage applications use appropriate ACSR constructions and technical validation.

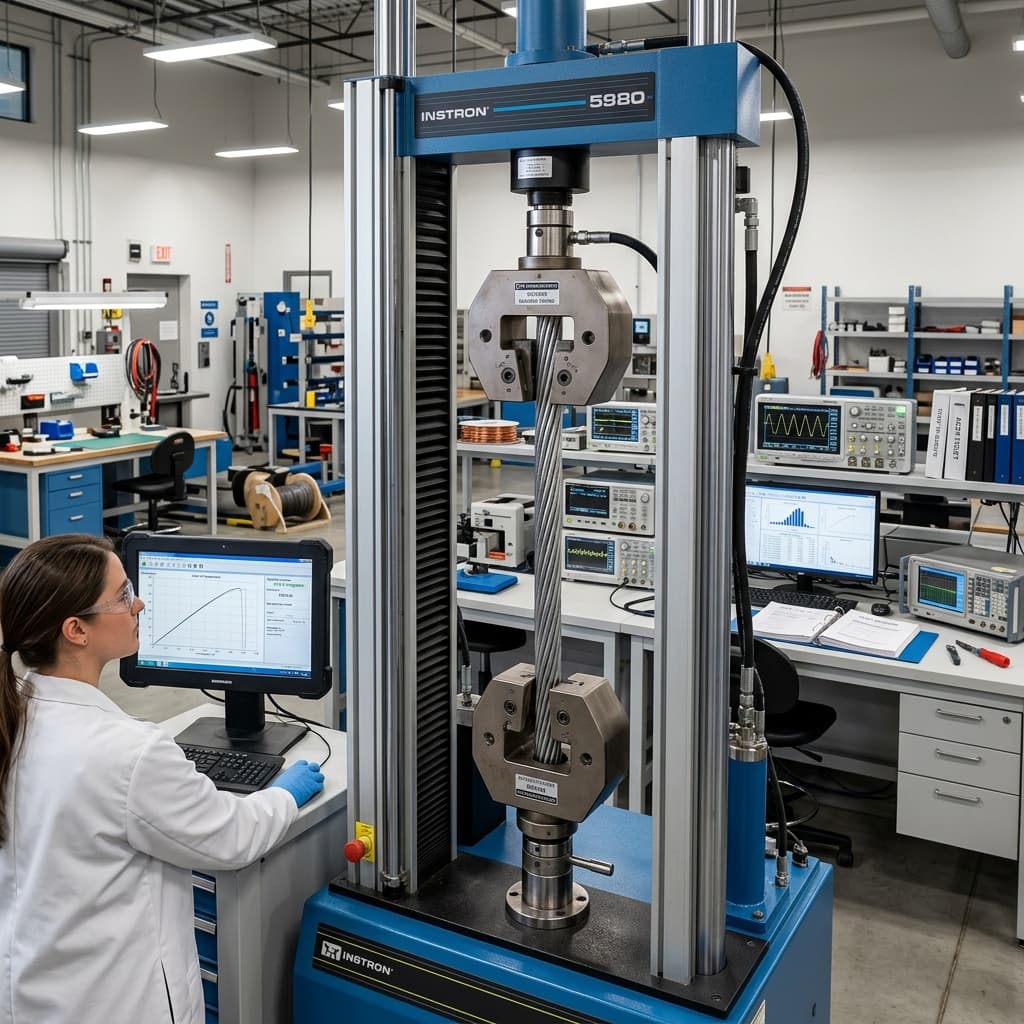

Testing parameters
Testing parameters
Cross sectional area, diameter, mass, resistance, and calculated breaking load should be captured in datasheets.
Step 01 / 05Process Step
Aluminium outer layers
High-purity aluminium strands form the conductive outer section.
Step 02 / 05Process Step
Galvanized steel core
The central reinforcement carries tensile load and conductor weight.
Step 03 / 05Process Step
Layered stranding
Aluminium may be arranged in one or more concentric layers depending on size.
Step 04 / 05Process Step
EHV variants
Higher voltage applications use appropriate ACSR constructions and technical validation.
Step 05 / 05Process Step
Testing parameters
Cross sectional area, diameter, mass, resistance, and calculated breaking load should be captured in datasheets.
Applications
Overhead power lines and transmission corridors requiring high strength.
05Use Cases
Focused on transmission corridors, river crossings, and long-span utility routes.
01

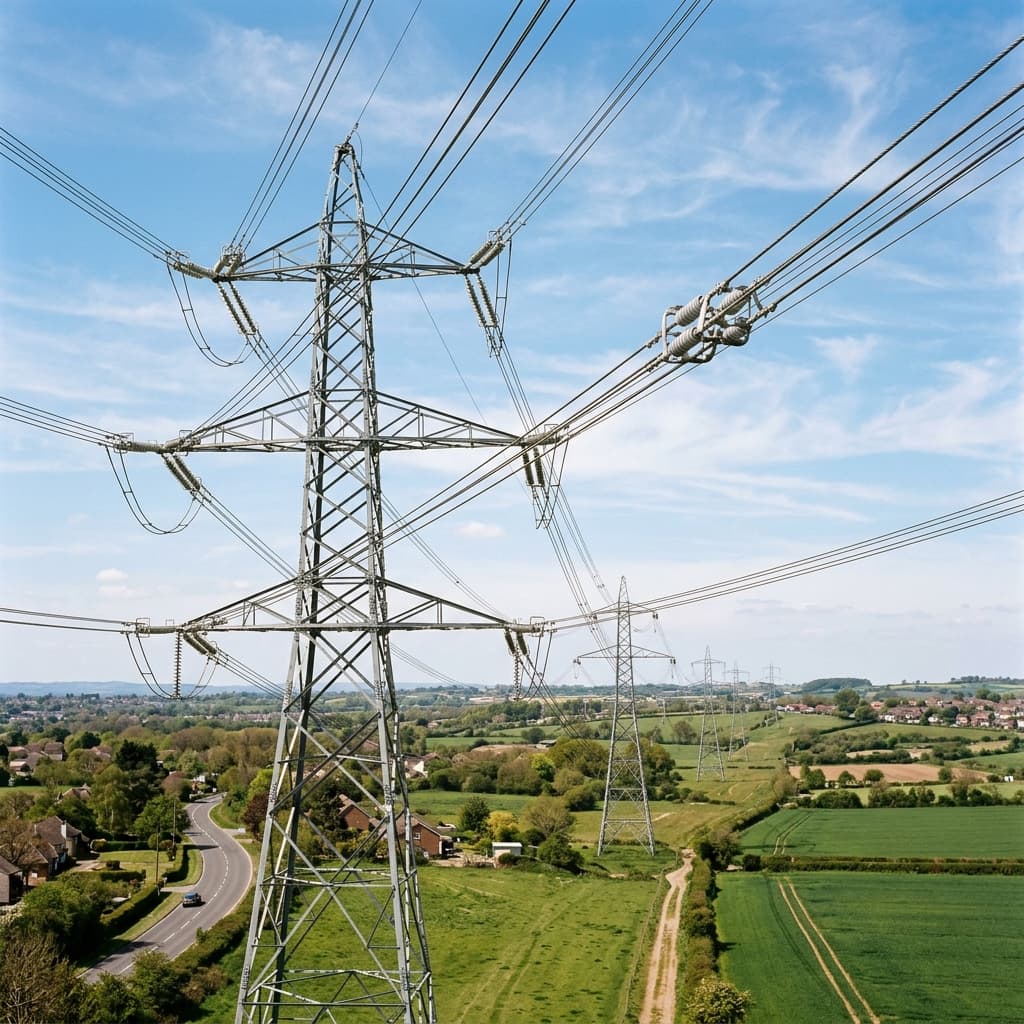

Medium and long spans
Medium and long spans
Medium-span and long-span overhead power lines.

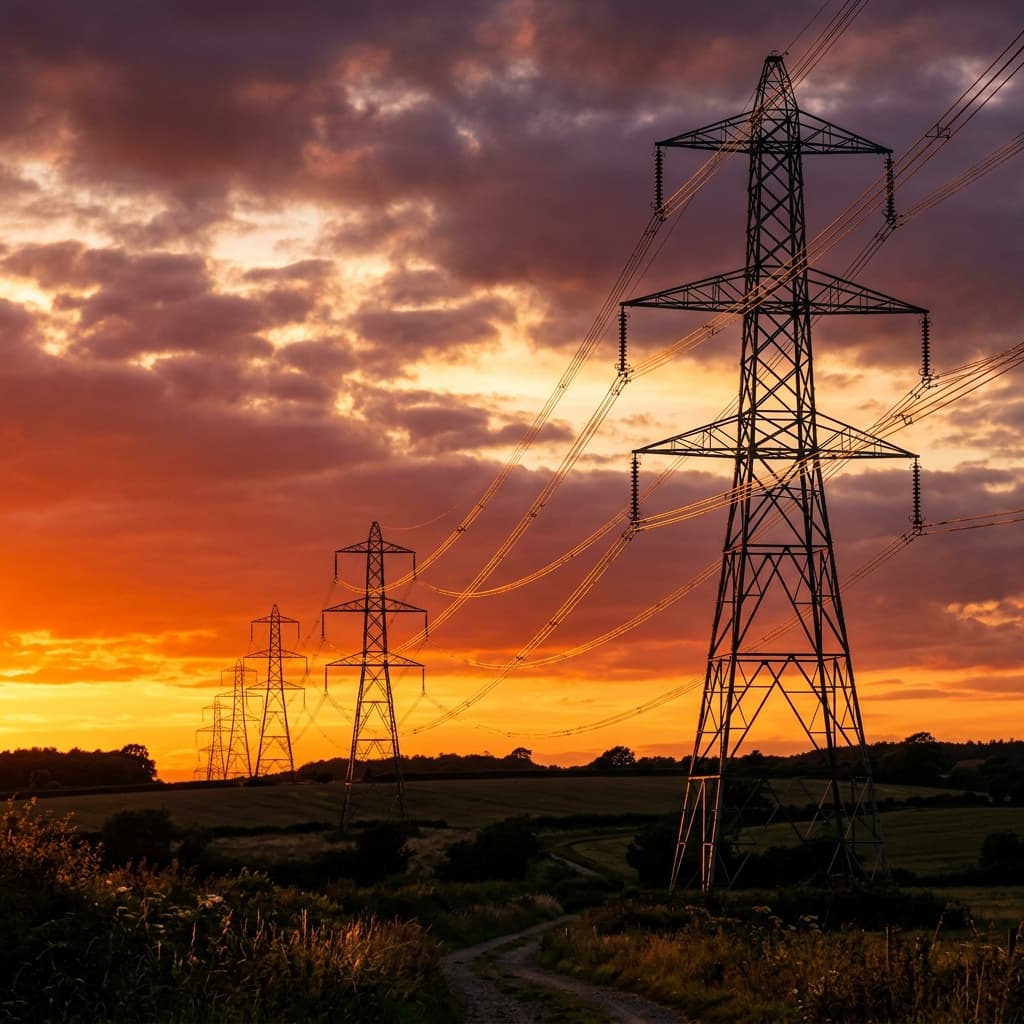

EHV transmission
High-voltage and extra-high-voltage transmission corridors.

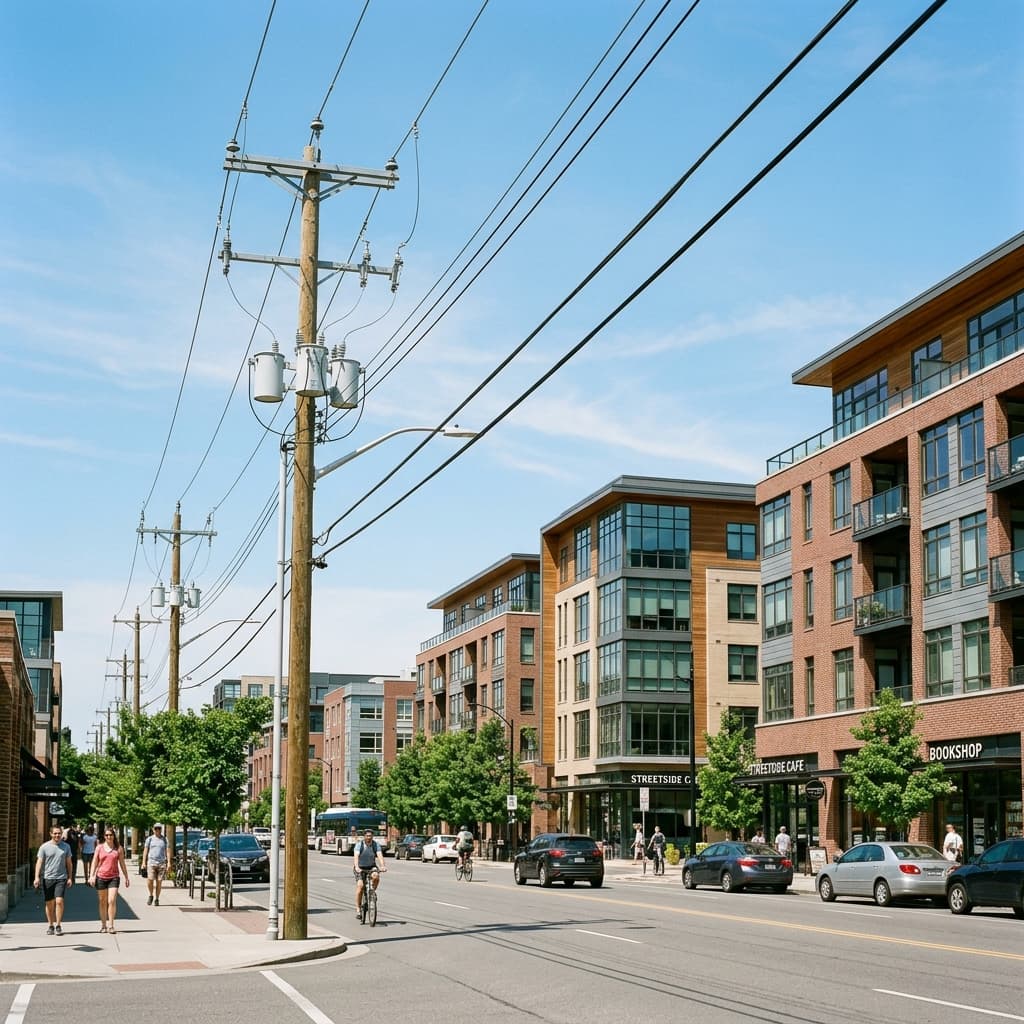

Distribution routes
Distribution routes requiring higher mechanical strength than AAC.

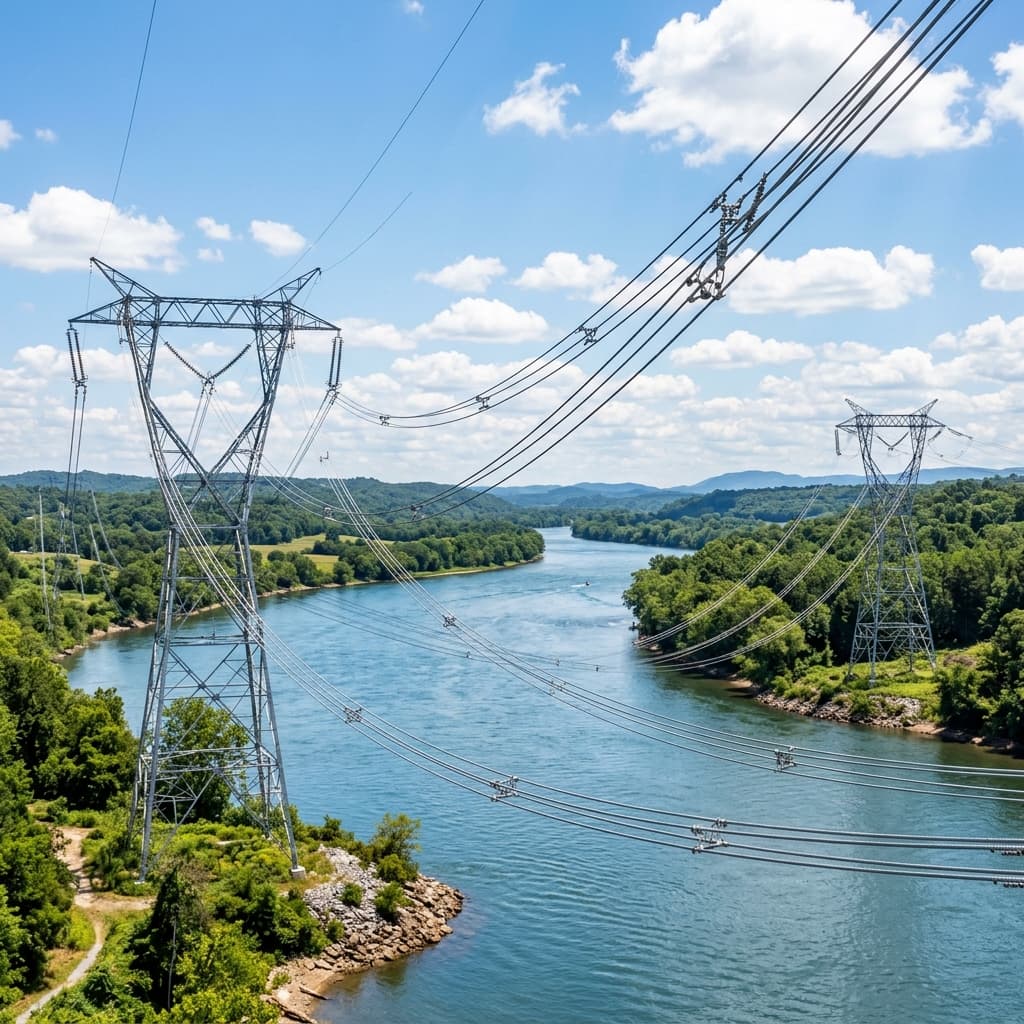

River crossings
River crossings, uneven terrain, and routes with heavier mechanical loads.

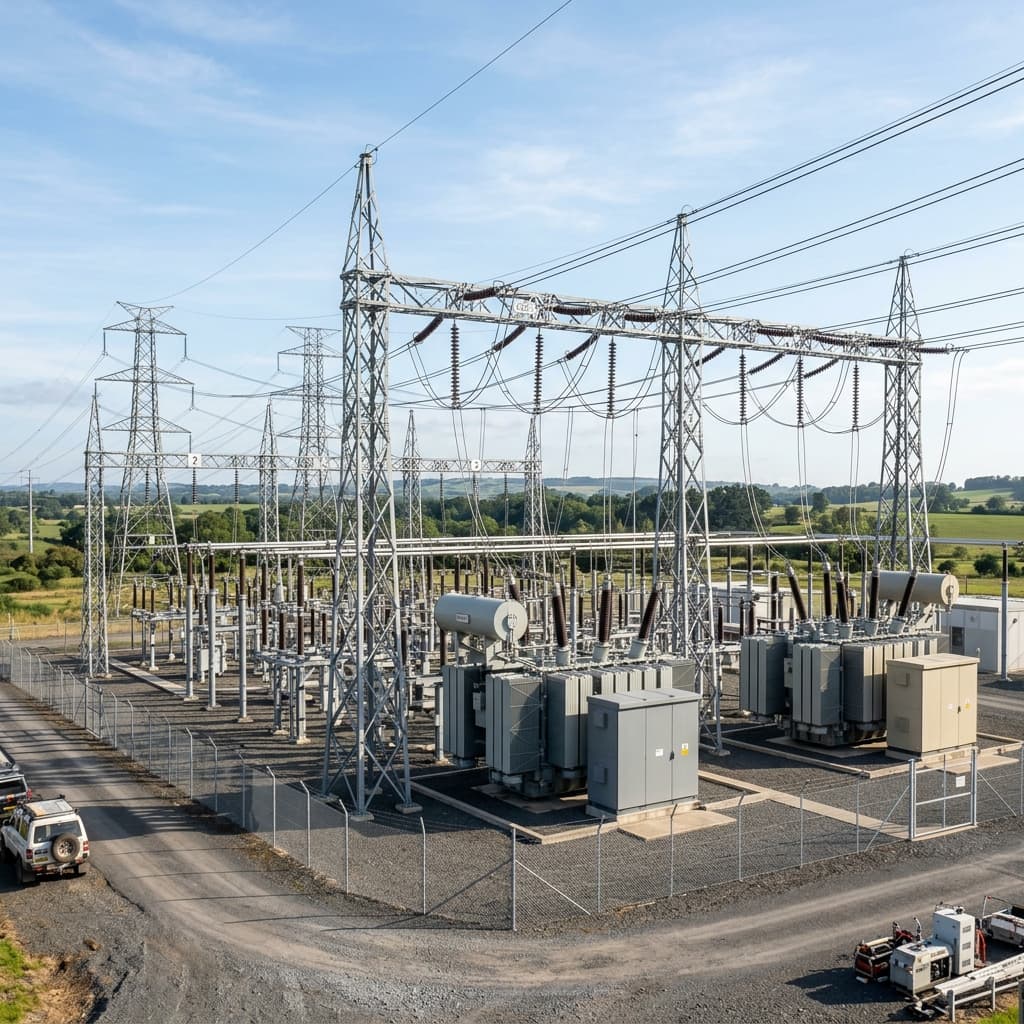

Grid reinforcement
Grid reinforcement where proven conductor construction is preferred.
Conductive material
Aluminium
Reinforcement
Galvanized steel core
Standards
IS 398 Part 2 and IS 398 Part 5
Core options
1 wire, 7 wire, or 19 wire steel core
Use case
Medium and long spans, transmission and distribution
Standards and quality control

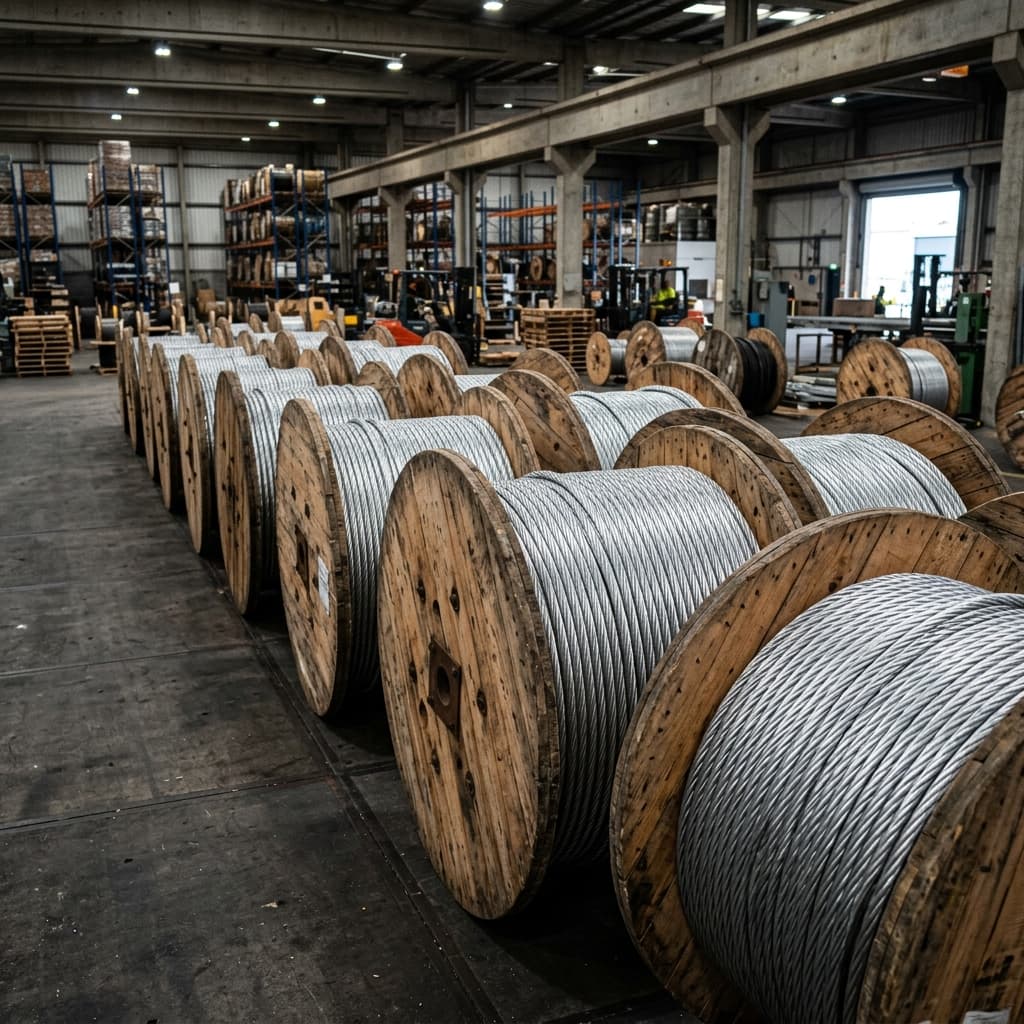

Palriwal's conductor manufacturing presents ACSR around dimensional accuracy, controlled stranding, tensile validation, resistance checks, and dispatch readiness for utility projects.
IS 398 Part 2IS 398 Part 5ASTM B232BS 215 Part 2IEC 61089
Specification Snapshot
Datasheet-ready details for first technical review.
The product page should give procurement and engineering teams enough clarity to start a conversation, while full technical tables are shared during the technical review process.
Specify ACSR for stronger overhead line performance.
Send the conductor code, standard, span condition, and voltage class for technical support.
